Introduction

Traditional solar drive systems face two core limitations: rigid one-to-one PV-to-load matching and inflexible energy flow. Most solutions pair one PV array with a single device, wasting surplus solar generation when equipment is idle. They also lack flexible load expansion, cannot redistribute power across multiple loads, and fail to achieve seamless AC/DC coordination — all of which reduce PV utilization efficiency.

Eternal's proprietary ParaFlow (Microgrid-Expandable) technology addresses these pain points at their core:

Through DDC (Direct Digital Control) technology, ParaFlow enables multi-parallel and multi-series load connections in PV systems to form microgrids, supporting free energy flow or algorithm-based distribution, with AC/DC real-time complementarity to maximize PV utilization.

Built on DDC digital regulation and integrated with our E-Hybrid™ and PINN AI scheduling framework, ParaFlow constructs scalable shared PV microgrids for industrial ventilation, HVAC systems, and water treatment applications.

How ParaFlow Works — Core Mechanisms

ParaFlow relies on embedded DDC digital control hardware inside Eternal HS/HX energy managers, with four core functional modules:

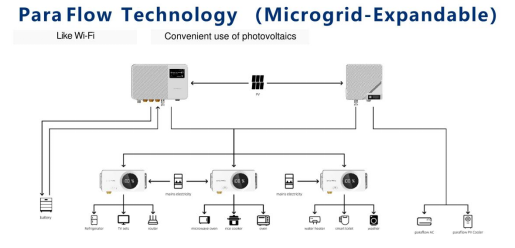

1. DDC-Powered Multi-Parallel & Multi-Series Load Networking

DDC removes the one-PV-one-load constraint. Multiple HVAC units, ventilation equipment, and water treatment pumps can connect in parallel or series within one PV microgrid, sharing a single solar array. The plug-and-play architecture supports continuous load addition without PV reconfiguration.

2. Free Energy Flow + AI Algorithmic Distribution

The DDC controller establishes bidirectional energy channels. Solar power flows freely between all connected loads, while the AI algorithm dynamically allocates power based on real-time load priority, demand, and sunlight intensity — automatically shifting surplus energy to underpowered equipment or storage.

3. Real-Time AC/DC Dynamic Complementarity

ParaFlow coordinates DC solar and AC grid power synchronously. When solar falls short, the grid instantly supplements the gap. When solar is abundant, PV takes full priority. This seamless synergy maximizes PV utilization.

4. Cross-Compatibility with Energy Storage

Paired with HX energy managers, ParaFlow distributes stored solar power to any load after sunset or during blackouts. Daytime surplus PV is routed to batteries, while stored energy powers ventilation, cooling, or water treatment at night.

Key Features of ParaFlow Technology

Fully Expandable Shared Microgrid

Traditional solar drives use exclusive PV matching, wasting output when equipment is off. ParaFlow's DDC multi-parallel/series networking builds a shared microgrid: one PV array serves multiple loads, with solar power circulating freely across all running devices.

Dual Energy Flow Modes

l Free energy flow: Automatic circulation to connected loads — ideal for small-scale systems

l Algorithm-based distribution: AI prioritizes critical equipment and optimizes power allocation for maximum savings

AC/DC Real-Time Complementarity

DC solar and AC mains operate in parallel without switching delay. Solar covers most load first, grid only fills shortfalls — significantly raising PV utilization and reducing electricity costs.

Flexible Load Expansion

Add new HVAC, ventilation, or water treatment loads at any stage via simple DDC parallel/series wiring. No extra PV panels or drivers required, cutting initial and upgrade costs by over 25%.

Inherently Grid-Friendly Architecture

All energy circulation stays inside the local microgrid. Surplus PV never flows back to the public grid, eliminating costly anti-reflux hardware and complex grid certification — fully compliant with policies across Europe, Southeast Asia, and other key markets.

Seamless Integration with Eternal Four-Mode Microgrid Operation

ParaFlow DDC logic supports all four core operating modes: pure PV direct drive, ACDC hybrid coupling, independent green microgrid, and storage off-grid operation — compatible with both battery-free HS and storage-integrated HX energy managers.

Vast Market Potential

l Maximize on-site solar self-consumption and significantly reduce utility bills

l Lower overall system investment with flexible load expansion — no extra PV panels or drivers

l Adapt to projects of any scale with dual energy distribution modes

l Reduce grid dependence through real-time AC/DC complementarity

l Eliminate reverse power flow risks and extra certification costs

l Enable centralized shared storage for reliable night and blackout operation

l Support future PV microgrid upgrades without replacing existing equipment

Application Scenarios

Commercial & Industrial HVAC Systems

Office buildings, shopping malls, hotels, and manufacturing plants. Multiple AC units share one PV microgrid via DDC parallel connection, with surplus solar stored for night cooling — reducing peak grid consumption.

Industrial Ventilation Systems

Workshops, livestock farms, warehouses, and parking ventilation. Multiple devices run in parallel within the ParaFlow microgrid, with flexible power redistribution maintaining stable 24-hour operation even during outages.

Water Treatment Systems

Industrial circulating water, agricultural supply, sewage, and landscape water treatment. Multiple loads access the shared microgrid, with AC/DC real-time complementarity ensuring stable operation under weak sunlight.

Additional Scenarios

Off-grid remote areas, regions with frequent power cuts, industrial carbon reduction retrofits, green building projects, and renewable energy subsidy initiatives worldwide.

FAQ

Q1: Can ParaFlow redistribute solar power between different load types (HVAC, ventilation, water treatment)?
A1: Yes. The DDC architecture breaks load type barriers. PV energy flows freely across all equipment in the same microgrid, with AI automatically distributing power based on real-time demand.

Q2: Does ParaFlow require energy storage to operate?
A2: No. Without batteries, ParaFlow still constructs a shared multi-load microgrid with free energy flow and AC/DC complementarity. Storage can be added later for night-time use.

Q3: Will DDC multi-load connection reduce MPPT tracking efficiency?
A3: No. Eternal's high-precision MPPT module maintains 99.5% tracking accuracy. DDC load networking and power distribution operate independently without interfering with maximum solar capture — verified by third-party tests.

Q4: Can I add new equipment to an existing ParaFlow microgrid later?
A4: Yes. The plug-and-play architecture supports continuous load addition via simple DDC parallel/series wiring, without PV array reconfiguration.

Q5: Is ParaFlow compatible with my existing equipment?
A5: Yes. ParaFlow is designed to work with existing HVAC, ventilation, and water treatment hardware, supporting later PV microgrid upgrades without full equipment replacement.

Conclusion

As global energy prices rise and distributed PV grid access tightens, scalable multi-load solar microgrids have become the core demand for HVAC, ventilation, and water treatment buyers worldwide.

Eternal ParaFlow delivers a low-cost, policy-compliant, and high-efficiency shared PV microgrid solution. Combined with our E-Hybrid™ dynamic coupling and AI energy scheduling, it enables clients to maximize solar returns, shorten ROI cycles, and achieve carbon-neutral energy self-sufficiency.
